Current sensor voltage output type - Weikewei - accuracy up to 0.5%

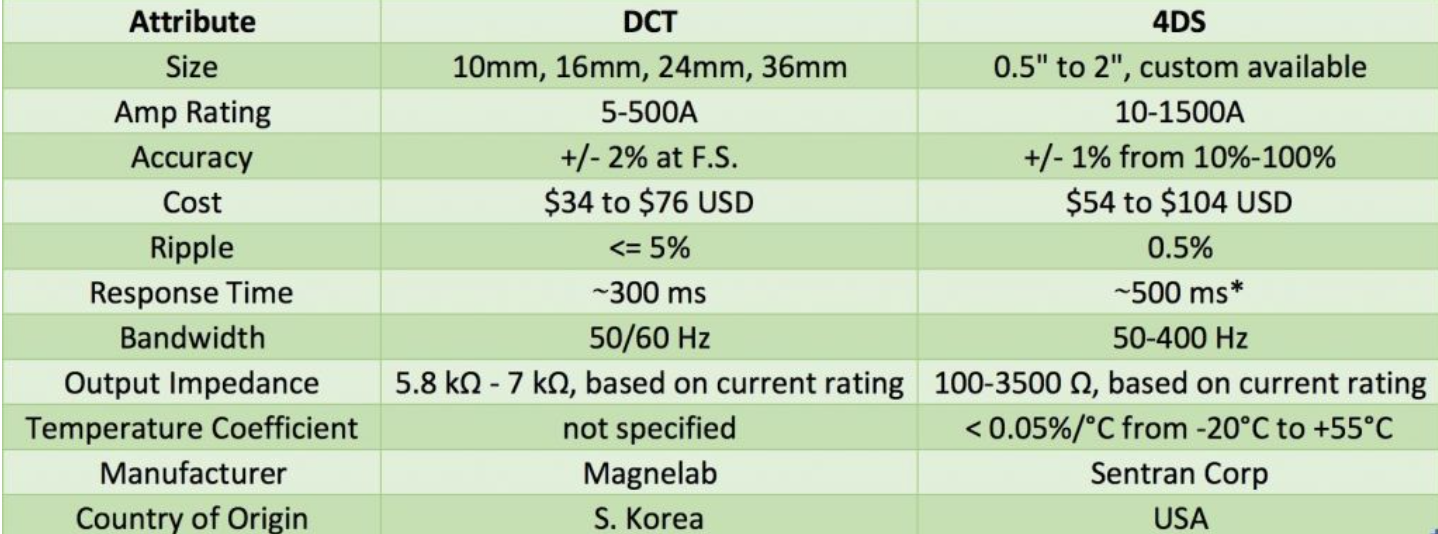

If you need an Adc to Vdc converter, you need to compare the DCT series and 4DS series. To help you achieve this, please consider the following table: Customizable. As the response time decreases, ripple increases, and vice versa. As can be seen from the above chart, 4DS can be optimized for specific applications that require faster response time, less ripple, specific output impedance, etc.
On the other hand, the DCT series. We have 4DS-250A/5Vdc (1 "x1") and 4DS-500A/5Vdc (1.5 "x1.5"); other types of products typically require a 2-week delivery time. The DCT series is a hinged split core CT, as shown in the picture. Please note that it does not come with a lead wire.
4DS looks more like a typical CT scan. Equipped with 6-inch red/black twisted pair cable (customizable). 4DS is heavier than DCT and has an open average value.
The conclusion is that if accuracy is not so important and price is the most important, you may want to use DCT. On the other hand, if accuracy and compliance with specifications are the most important, take a look at 4DS
