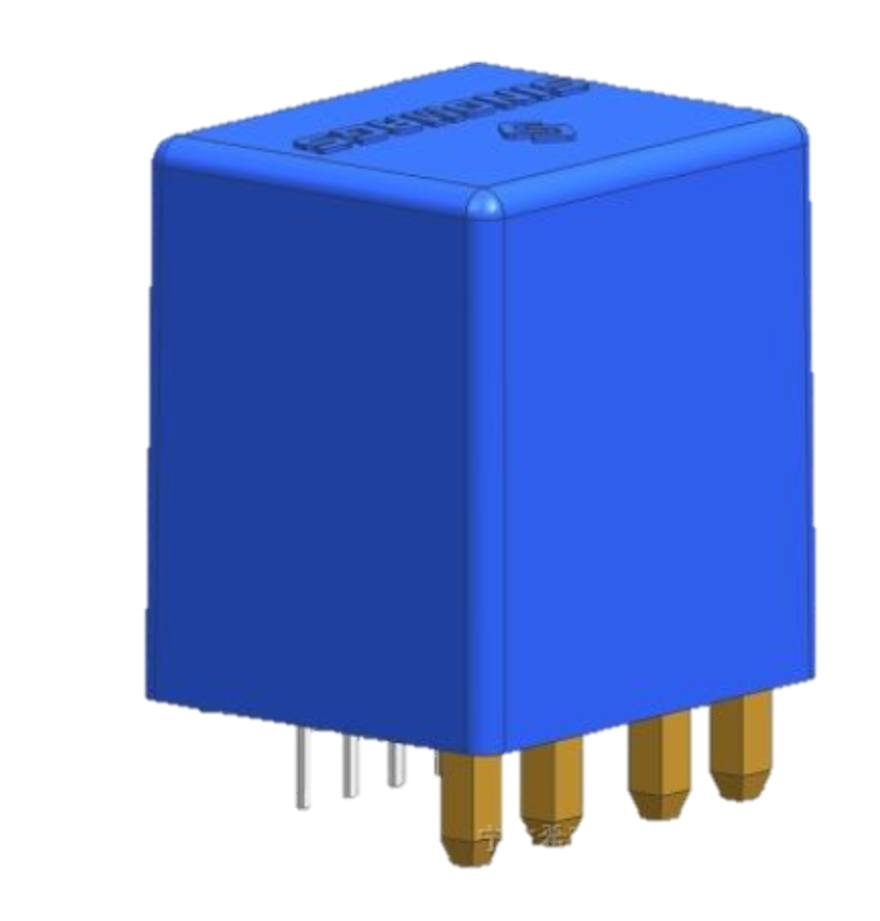

LEM Lem HX Domestic Current Sensor - National Military Standard Quality Certification Factory - [Weikewei]
Advantages of LEM Lem HX domestic current sensor products:
1. High precision; 2. Low insertion loss; 3. Small size and space saving; 4. A design that can be extended to a wide current range; 5. Strong ability to resist external interference; 6. Strong insulation and isolation performance; 7. Low temperature coefficient;
Product Features:
1. TMR tunnel magnetic resistance; 2. Adopt open-loop principle; 3. Electrical isolation between primary levels; 4. Insulation voltage 4 kV/AC; 5. Single power supply; 6. PCB level installation;
Main applications:
1. Communication frequency conversion speed regulation equipment; 2. DC motor; 3. Uninterruptible power supply; 4. Switching power supply; 5. Welding machine power supply; 6. Communication power supply;
Widely used in direct current, alternating current, and pulse small current measurement from 3-5A nominal current isolation. Small size, compact design, and low price. Only 2.93 cm2 is needed as the PCB mounting area to support 8g of these sensors. The 17 models are divided into multiple versions with different rated currents. PCB installation. The measurement range is up to 3 x Ipn. Dual power supply+/-12 to+/-15V, single power supply+12 to+15V. Voltage output
The rated current includes: 3A, 5A, 10A, 15A, 20A, 25A, 50A, 60A. Each product in several series can achieve overload output
