2-channel SSPC - [Weikewei] - reduces fever by 40%

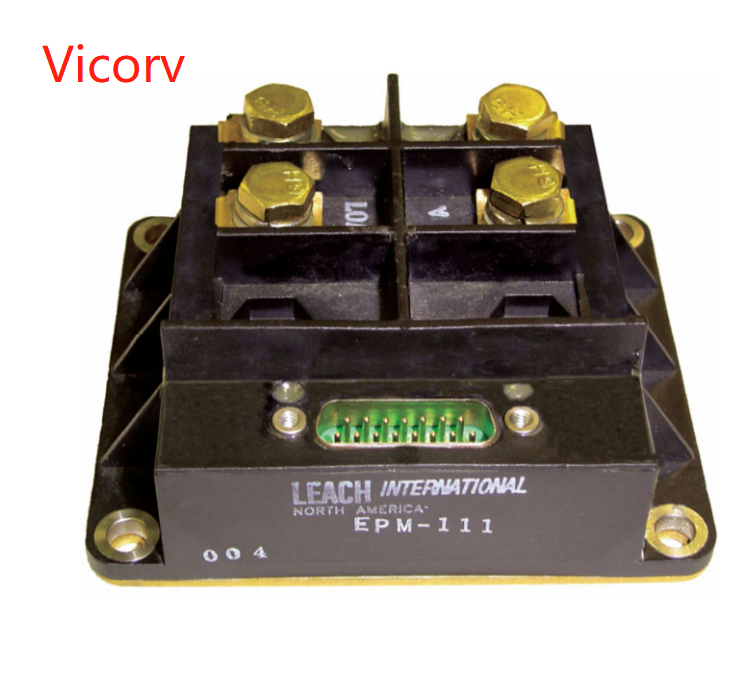

EPM1112 Channel SSPC
The LEACH solid-state power controller（SSPC）We have adopted the latest microcontroller and power FET technology integrated into the printed circuit board (PCB). EMP-111 has a stepless switching function suitable for all types of loads, while preventing overload and short circuit. It has a built-in testing (BIT) function that can verify all critical functions during startup and operation. It is designed to operate in a 28 VDC system and has two fully rated 60 Amps channels. Size: 80 x 96 x 41 millimeters Weight: Maximum 500 grams
features
2通道SSPCRated current from 60 amperes to 85 ° C
Power on and continuous drill bit
Serial Data Bus Interface
Programmable rated values (25%, 50%, and 75% of rated values) and trip parameters
No bounce switching
Rapid response to low voltage drop and power consumption
Software based additional configuration design
High voltage isolation
Application Features
Serial control and monitoring capability
Replace the electromechanical relay
Continuous work
Load Status Report
No bouncing
Long lifespan and high reliability
Overload trip
Programmable rating
