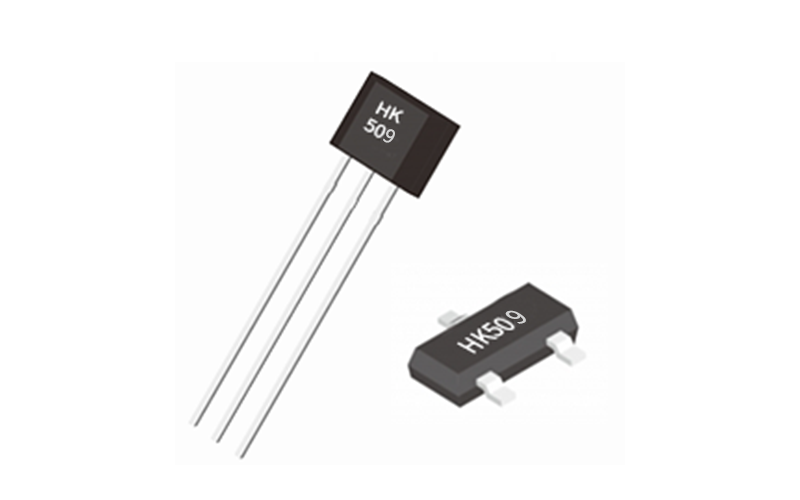

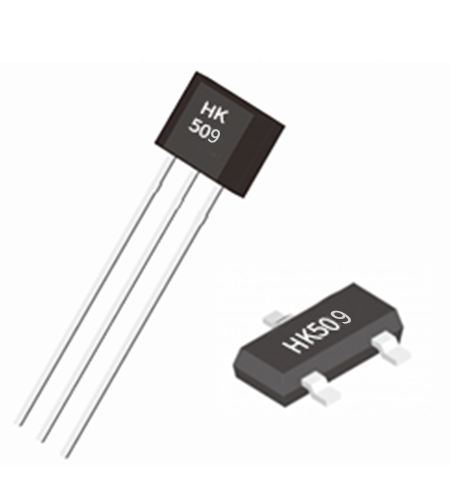

HK509 is a high-sensitivity unipolar Hall switch chip designed based on BCDMOS technology. The chip includes temperature compensation, comparator, and output driver. In addition, mechanical stress has little effect on the magnetic parameters of the chip. This series of chip sensors is suitable for industrial environments and automotive applications, with an ambient temperature range of -40 ℃ to 150 ℃ and a power supply voltage range of 2.7V to 30V. AH509 has three packaging forms: TO92S, SOT23 (small), SOT23-3L, and the packaging complies with RoHS standards. The product has passed AEC-Q100 certification.
Product Features:
AEC-Q100 Grade 0 Automotive Certification
Working voltage: 2.7V~30V
ESD: Soil 12kV
Has strong mechanical stress suppression ability
Temperature range: -40 ° C~150 ° C
The decrease in magnetic flux density caused by temperature rise is compensated by the built-in negative temperature coefficient
The power pins have voltage protection
Suitable for automobiles and industry
Application areas:
Speed and RPM sensors
Tachometer sensor, flow sensor
DC motor, motor and fan control, robot control, proximity sensor, position sensor
Safety buckle, hood, trunk door lock, sunroof/convertible top/tailgate/liftgate activation
Brake/clutch pedal
Electric Power Steering System (EPS)
Transmission shifting
wiper motor
Product parameters:
Input range: selectable within 0~30A, such as 0~10A, 0~25A, etc | Isolation withstand voltage: AC 2.0KV/min * 1mA between input/output/enclosure |
Accuracy level: ≤ 0.5% F.S | Insulation resistance: ≥ 100M Ω (DC500V) |
Temperature characteristics: ≤ 100PPM/℃ (0-50 ℃) | Response time: ≤ 300mS |
Whole machine power consumption: ≤ 3VA | Working temperature: -25 ℃~85 ℃, 20%~90% without condensation |
Power supply mode: 12V, 15V (± 10%), multiple options available | Execution standards: GB/T 13850-1998, IEC688:1992 |
Signal output: 0-5V, 1-5V and other options available | Working temperature: -40 ℃~105 ℃, 20%~90% without condensation |
Execution standards: GJB9001, SJ20790 (temperature grade selected at the time of ordering) |
