The VCS758 series current sensor IC by Vicorv offers an economical and accurate solution for AC and DC current sensing. It is a fully domestically developed open-loop Hall effect current sensor module, encompassing chip design and module assembly process.

The device features a precision, low-offset linear Hall circuit with a copper conductive path situated near the chip. The current flowing through this copper path creates a magnetic field, which the Hall IC converts into a proportional voltage. The close proximity of the magnetic signal to the Hall transducer optimizes the device’s accuracy. The low-offset, chopper-stabilized BiCMOS Hall IC provides precise proportional output voltage and is meticulously programmed at the factory.

Features:

• Isolated Measurement: 5kV @ 50Hz for 1 minute

• Current Range: ±50~±400A AC and DC current

• Power Supply: 5V/3.3V

• Package: PFF package

• Extremely Low Current Conductor Impedance: 0.08mΩ

• Response Time: As low as 2.5μs

• Wide Operating Temperature Range:-40~125°C/-55~125°C

• High Accuracy: ±1% accuracy error at room temperature;

                            ±3% accuracy error across the full temperature range

• Strong Driving Capability: 3k?

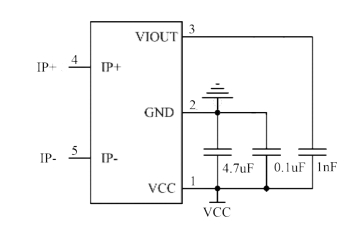

• Simple Peripheral Circuitry Required

• Surge Current: 20kA 8/20S

• Interference Resistance: Resistant to interference from wire magnetic fields, external magnetic fields, and geomagnetic fields

• High Power Supply Rejection Ratio

Selection Table:
