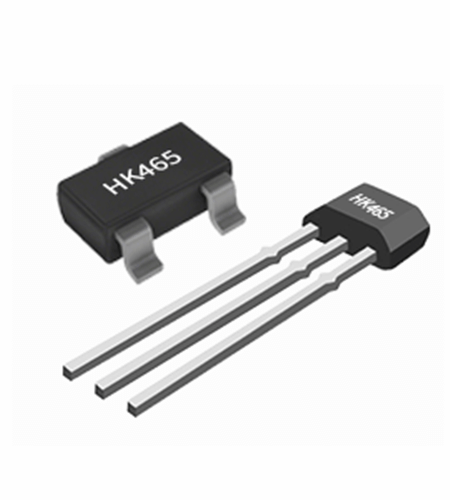

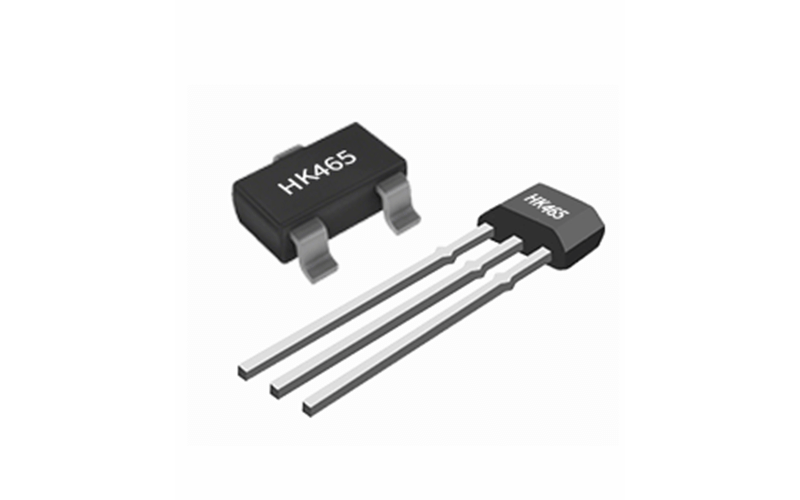

HK465 is designed and produced using CMOS technology. It is a South Pole (HK465UA) or North Pole (HK465SU) sensitive low-power all pole Hall effect switch. This device integrates a voltage regulator, Hall voltage generator, small signal amplifier, chopper regulator, Schmitt trigger, and push-pull output. This sensor has the characteristics of good temperature stability, strong stress resistance, and high sensitivity, with a working voltage of 2.5-5.5V.

Product Features:

Push pull output

ESD performance can reach up to 6kV

Working voltage: 2.5V~5.5V

Application of low-power battery power supply

Unipolar output switch

Application areas:

Solid state switch

Bluetooth earphone charging case

Portable disinfection box

Notebook computer

Low duty cycle magnetic sensing switch replacing reed

Liquid level meter

Proximity switch
