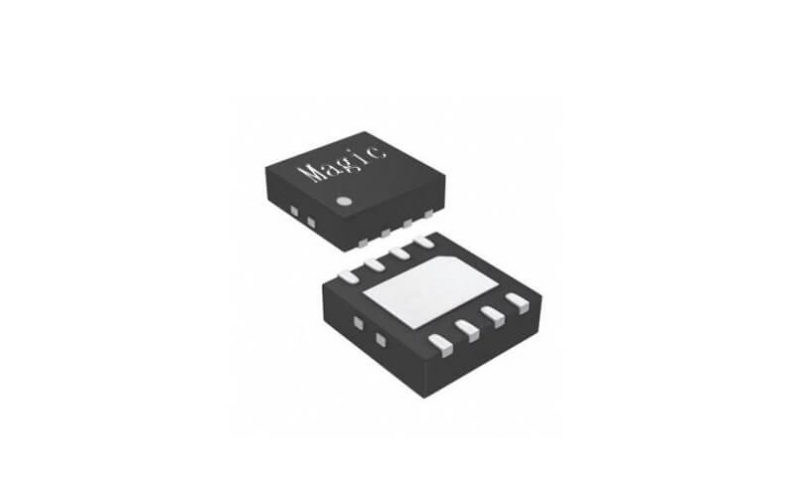

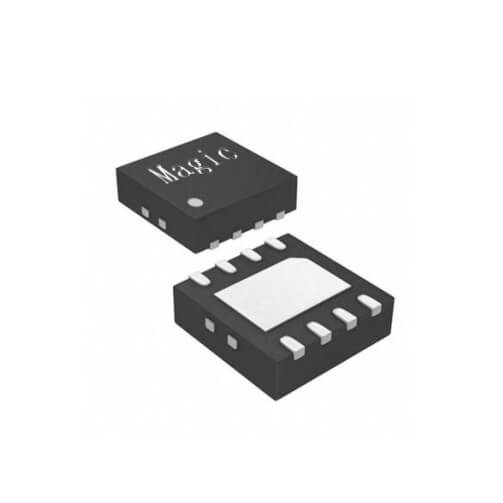

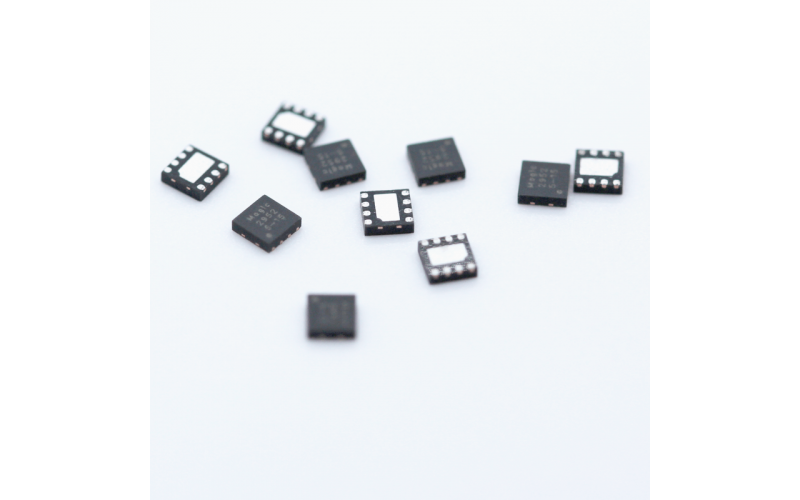

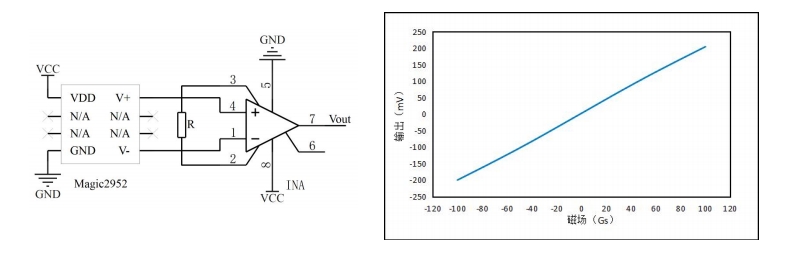

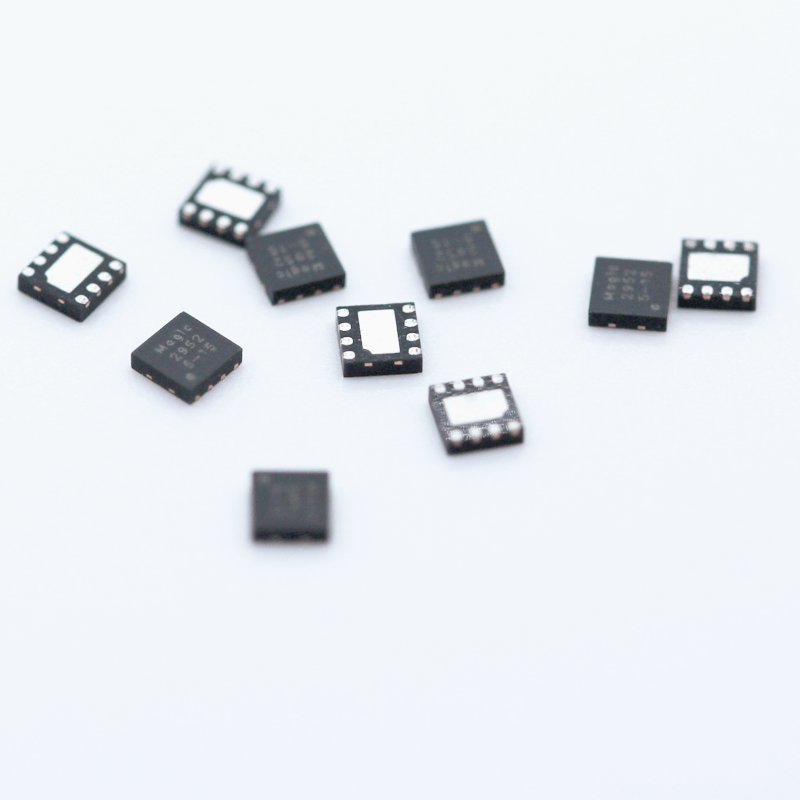

Magic2952 adopts a unique push-pull Wheatstone full bridge structure design, which includes four unshielded high-sensitivity TMR sensor elements. When the external magnetic field changes parallel to the sensitive direction of the sensor, the Wheatstone full bridge provides differential voltage output, and this output has good temperature stability. Magic2952 has superior performance and adopts DFN8L packaging form (2mm × 2mm × 0.45mm)

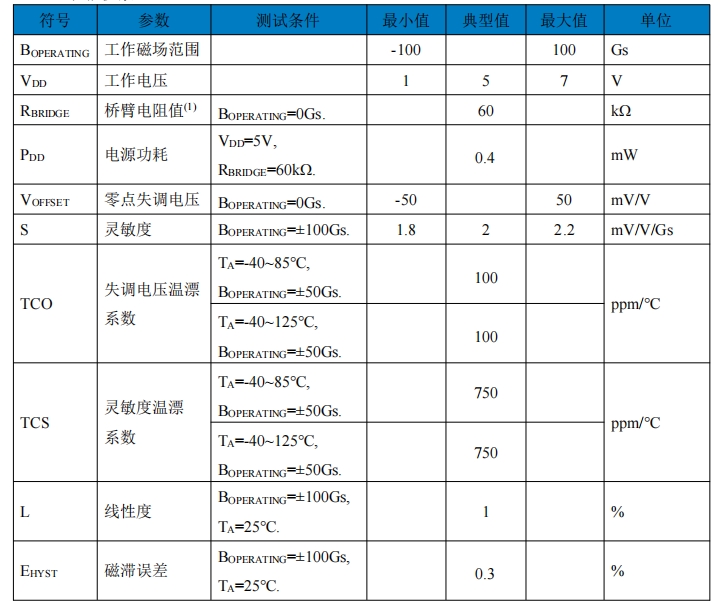

characteristic:

• Tunnel Magnetic Resistance (TMR) Technology

• high stability

• High sensitivity: 2mV/V/Gs

• Low hysteresis: 0.3% @ ± 100Gs

• Linear error: ± 1% @ ± 100Gs

• Working magnetic field range: ± 100Gs

• Working temperature range: -40~125 ℃

Application:

• current sensor

• Magnetometer

• Angle sensor

• position sensor

• Extremely low magnetic hysteresis
