The product features include:
Easy to install
Small size, space saving
No insertion loss
Strong anti-interference ability
Can be applied to AC variable drives, DC motors, communication power supplies, uninterruptible power supplies, switching power supplies, electric vehicles

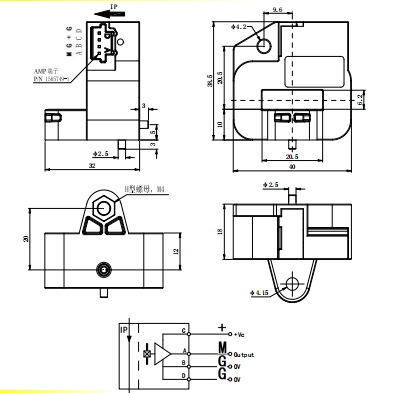

Parameters:
General tolerance: ± 5mm
Fixed hole size: φ 4.15mm
Suggested tightening torque: 1.6Nm (± 10%)
This is a standard product. If you need other specifications (such as measuring current, power supply voltage, output voltage, connectors, conversion ratios, etc.), please contact us at Wei Gong: 15728842207
