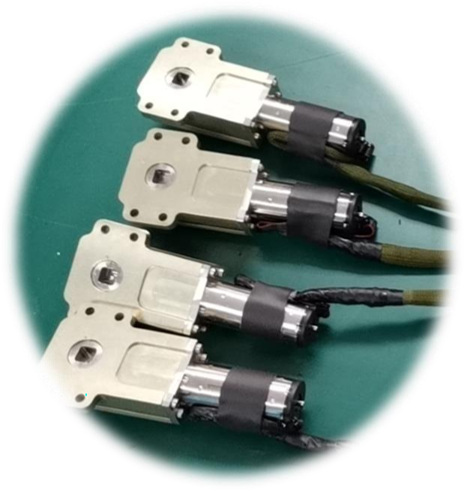

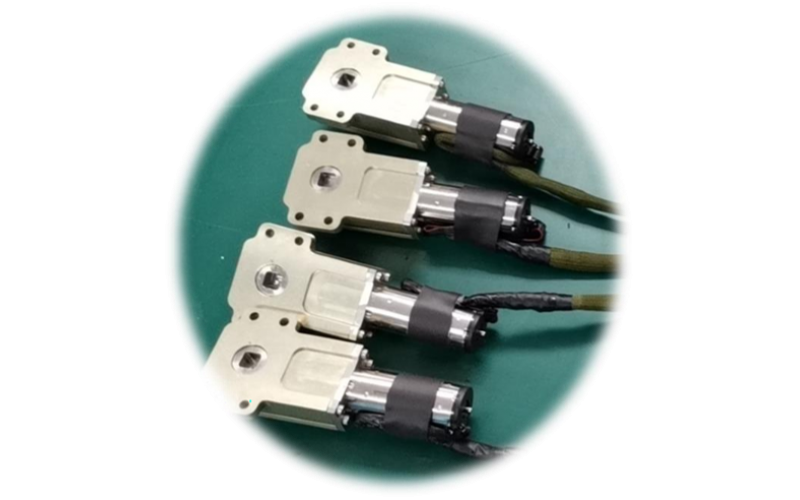

Main performance indicators of the 8Nm submersible rudder control system: maximum deflection angle: ≥ 25 ° Rated output torque: ≥ 5N · m Maximum output torque: ≥ 8N · m No load angular velocity: ≥ 120 °/s Rudder bandwidth: 10Hz Overshoot amount: ≤ 3% Rudder deviation zero position error: ≤ 0.3 ° Control mode: RS422
Main performance indicators of the 8Nm submersible rudder control system:
Maximum deflection angle: | ≥25° |
Rated output torque: | ≥5N·m |
Maximum output torque: | ≥8N·m |
Idle angular velocity: | ≥120°/s |
Servo bandwidth: | 10Hz |
Overshoot: | ≤3% |
Rudder offset zero position error: | ≤0.3° |
Control method: | RS422 |
