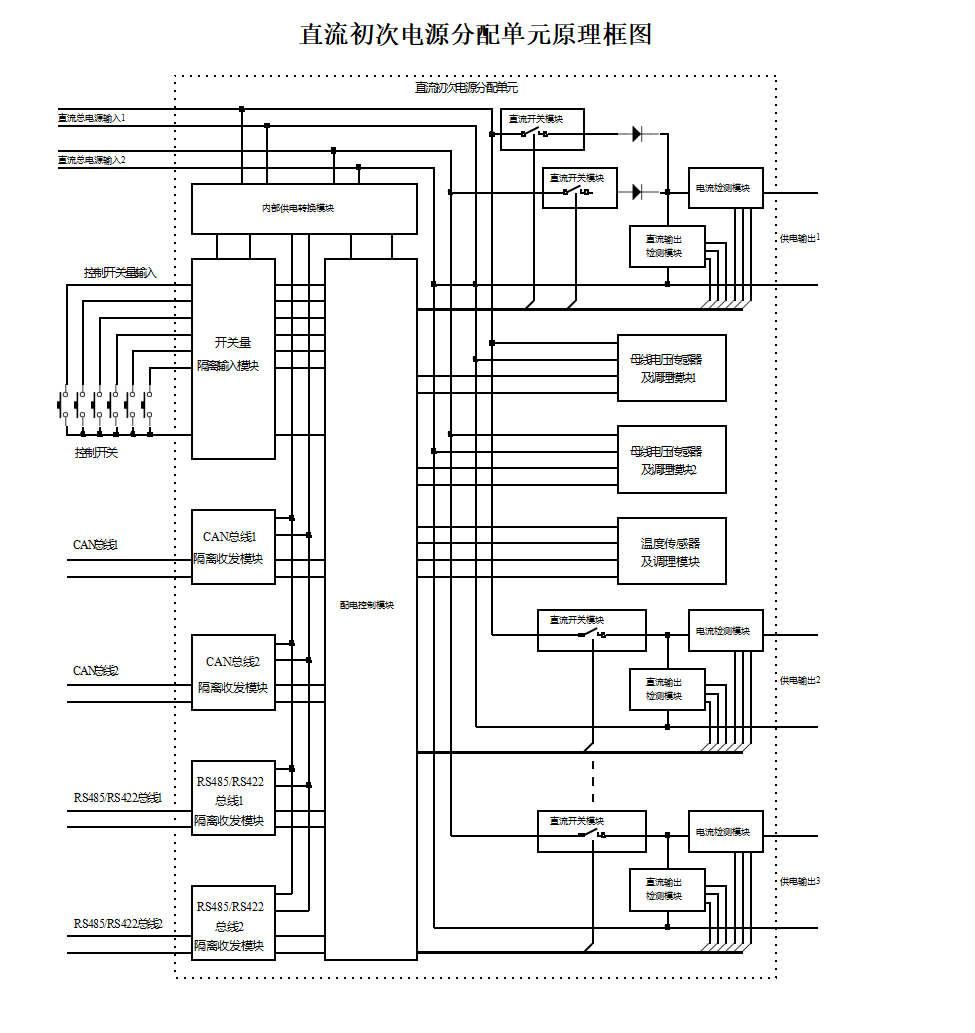

The DC primary power distribution unit is used for the initial power distribution of the model DC distribution system. It completes intelligent power distribution and management by receiving bus control instructions or switch commands from the upper computer. It has functions such as switch status feedback, current and voltage parameter feedback, overcurrent protection, overvoltage and undervoltage protection, overheating protection, etc. At the same time, it has high reliability and safety indicators, good electromagnetic compatibility and environmental adaptability, small size, light weight, low power consumption, and easy maintenance. Main performance indicators:

Main performance indicators:

• Working voltage: 28Vd. c., 120Vd. c., 270Vd. c., 450Vd. c., 900Vd. c. Working temperature: -40~85 ℃

• Load power characteristics: ≤ 800A/Ch, 28/120/270/450/900Vd. c. Control mode: switch control/bus control

• Control mode: Three modes (remote control, local control, and emergency control)

• Environmental adaptability: meets the relevant requirements of GJB1032-1990, GJB150A-2009, and GJB4-1983

• Electromagnetic compatibility: meets the relevant electromagnetic environment requirements of GJB151A-1997

• Communication interfaces: RS485, RS422, CAN, Ethernet, MIL-STD-1553B and other bus interfaces Electrical interfaces: connectors, busbars or terminals

• Structural form: Standard chassis or customized chassis Average time between failures: up to 30000 hours

• Technical Service Hotline: Mr. Li, 185-7641-0868
